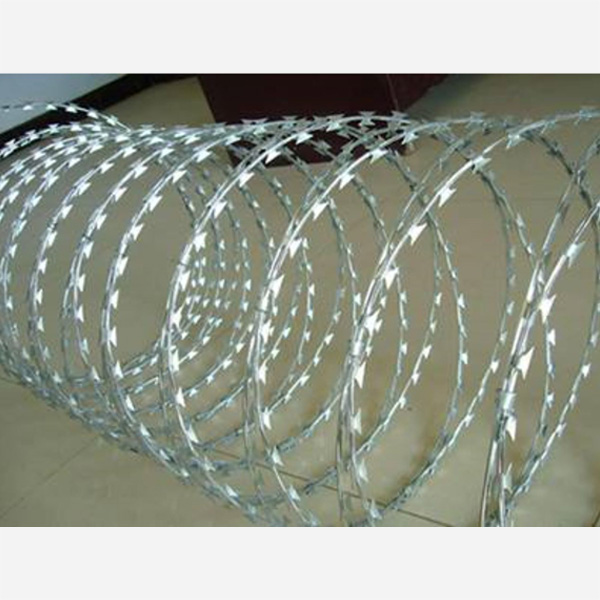

Concertina Wire
2″ GI Razor Blade Mesh × 10 SWG × 1.830 Height
-
- Galvanized Concertina Wire Coils:
- Barbed tape Coil Diameter: 730 mm.
- After expansion: 620 mm.
- Expandable length: 12 cm.
- Core wire Diameter: 2.5 mm.
- Blade thickness: 0.5 mm.
- Spiral Turns per coil: 55.
- Clips for Spiral: 5.
- Weight : 10.5 KGS. Approx.
- Vertical Post: 2″ GI Pipe
- Regular Specification on the post: thickness: 3.9 mm.
- Each post: 2.72m length.
- Corner Post: 3″ GI Pipe.
- The thickness: 4.0 mm.
- Post Height: 2.8 m in length.
- Gate:
- 1 m Gate: Door post: Diameter. 75 mm × 4.0 mm thick × 2.8 m height.
- Door frame: Diameter 48 mm × 3.0 mm thick × 1.83 m height.
- Galvanized Concertina Wire Coils:
